Double Cone Multi-Spindle Collets
Schlenker double cone multi-spindle collets are designed and manufactured to offer maximum precision and reliability. By using them, you improve the processing quality and precision of your machines considerably.
Double cone multi-spindle collets are used for workpiece clamping as well as in the main spindle of TORNOS multi-spindle machines.

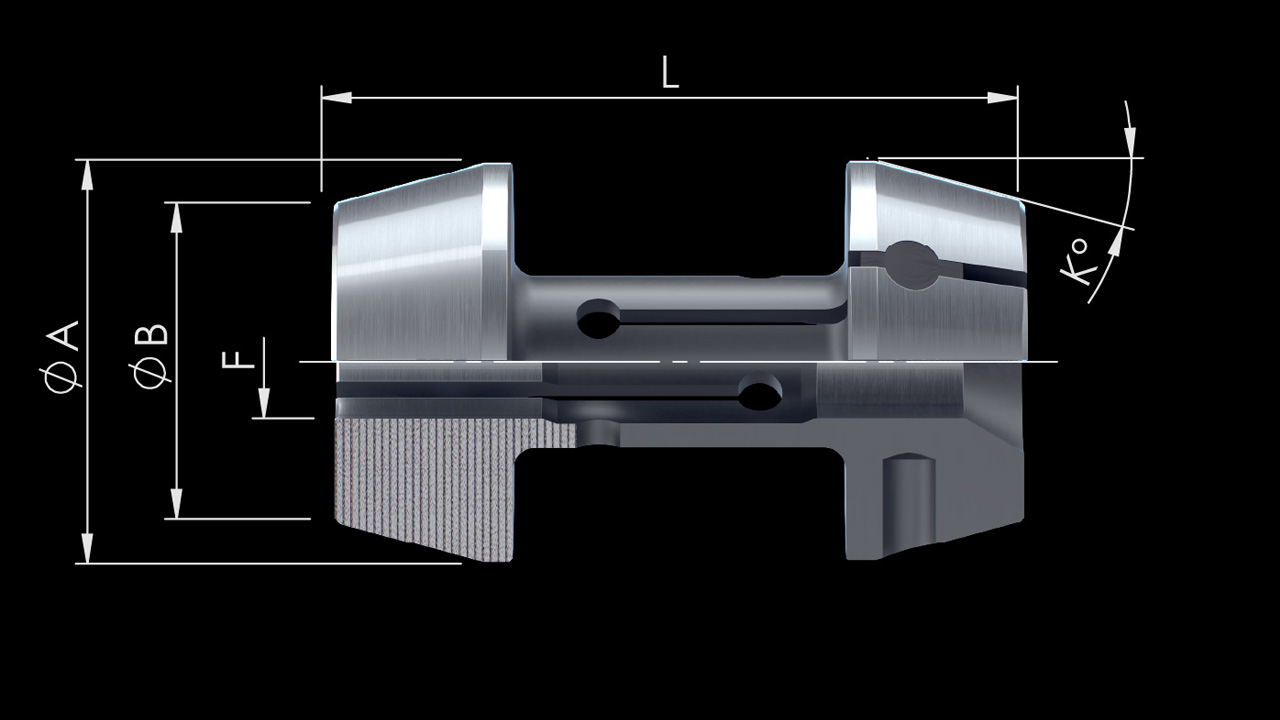

| B | Nose-Ø |
| A | Head-Ø |
| L | Total length |
| K | Taper angle |
| F | Shape |
Infotable - Click to expand
| Article | Ø A [mm] |
Ø B [mm] |
L [mm] |
K [Degree] |
F min. – max. [mm] |
 |
|||||
| E8731 | 35 | 28 | 60 | 15 | 8,0 – 25,0 |
| E8810 | 45 | 35 | 68 | 14 | 10,0 – 32,0 |
We offer a wide range of options for our double cone multi-spindle collets. Whether you want to simplify your work, improve your production quality or satisfy a customer specific production requirement. Test our double cone multi-spindle collets now, you will be convinced.

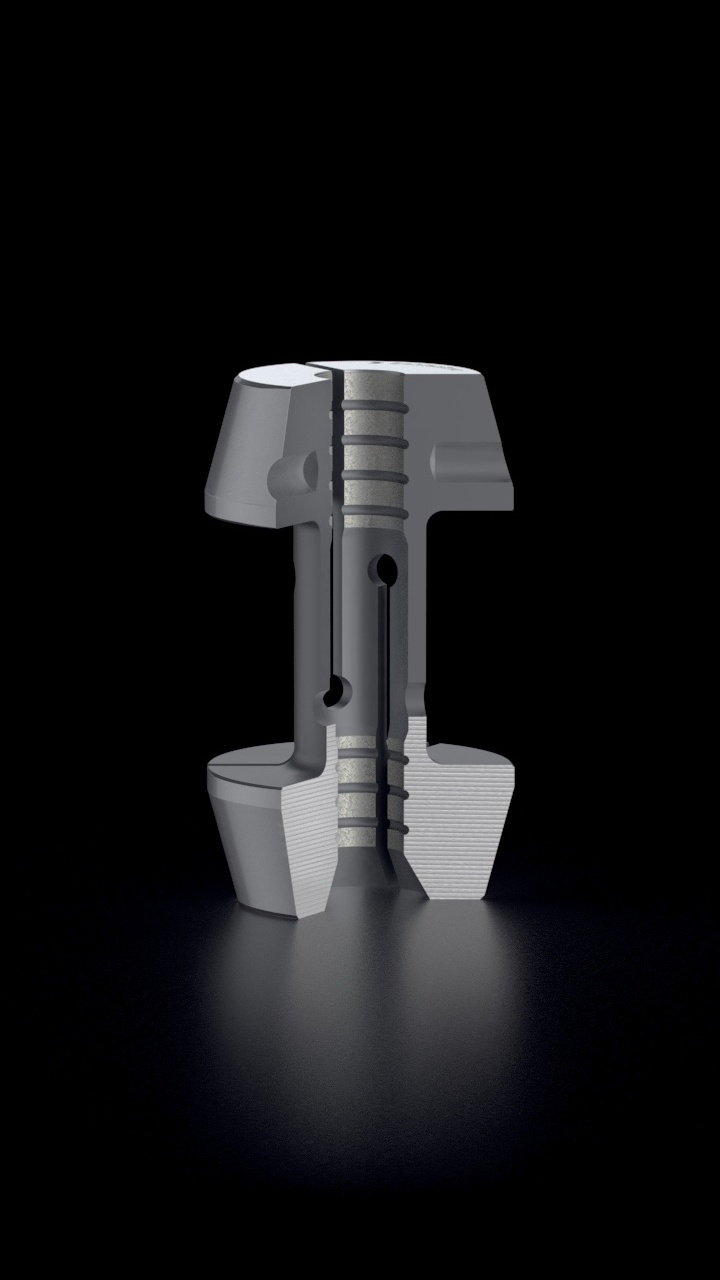

Schlenker clamping surface designs are developed and manufactured to meet a wide range of technical requirements and application scenarios. Their geometry and surface characteristics allow the clamping system to be adapted to different machining tasks, ensuring reliable function and consistent performance under varying operating conditions.

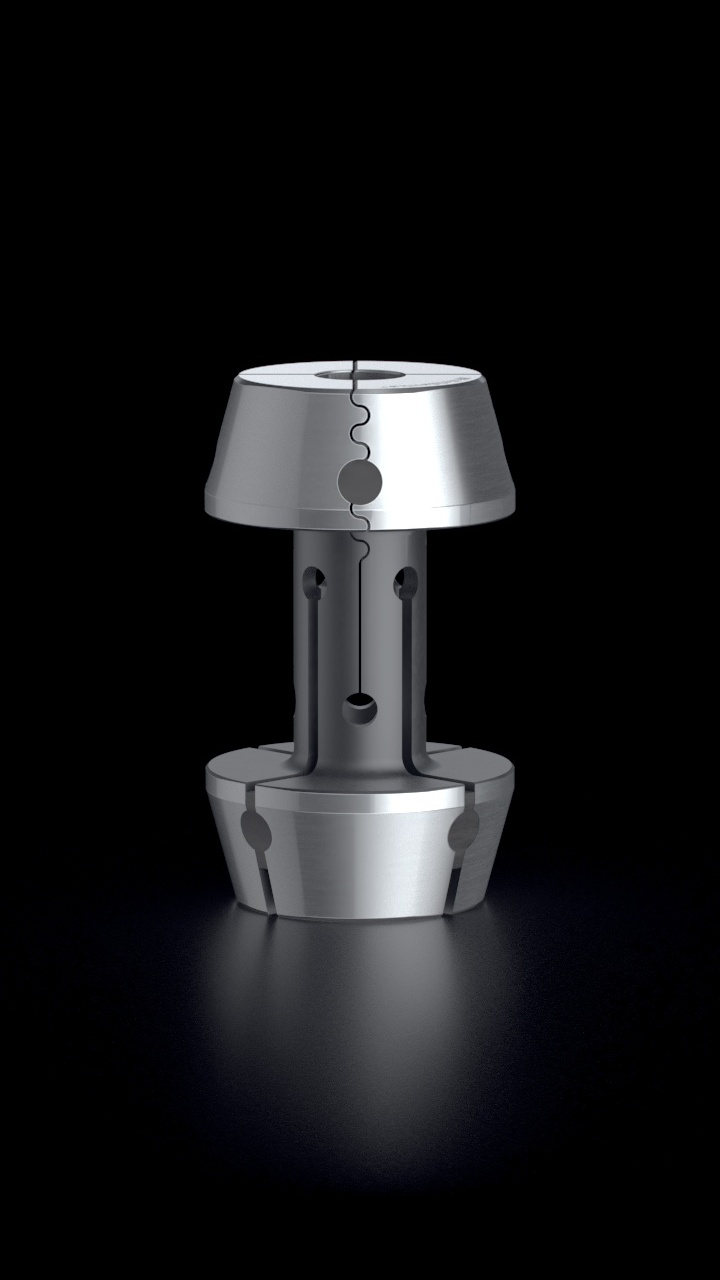

Schelenker collet slot designs are developed and manufactured to meet a wide range of technical requirements and application scenarios. Their geometry and arrangement allow the collet to achieve the required flexibility and clamping behaviour, ensuring reliable force distribution and consistent performance under varying operating conditions.

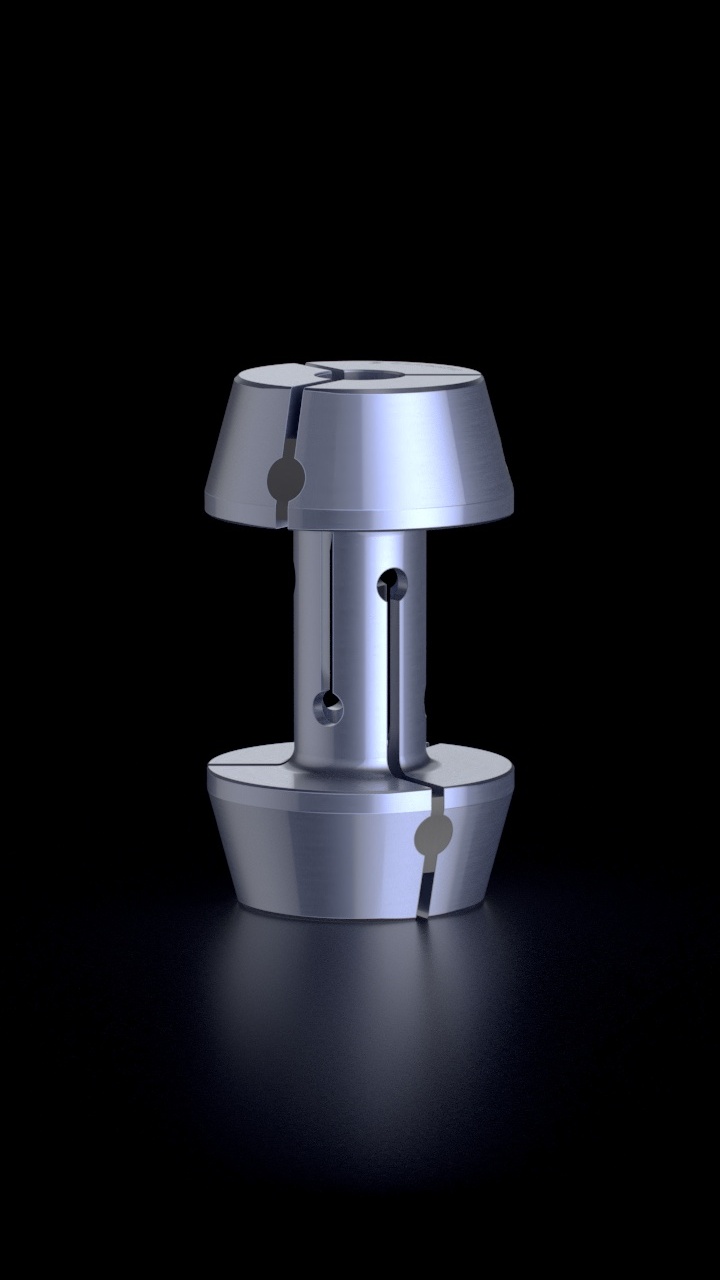

Schelenker wear reduction solutions are developed and manufactured to meet a wide range of technical requirements and application scenarios. Their design and functional characteristics help to minimize friction and surface stress, ensuring reduced wear, longer service life and consistent performance under varying operating conditions.

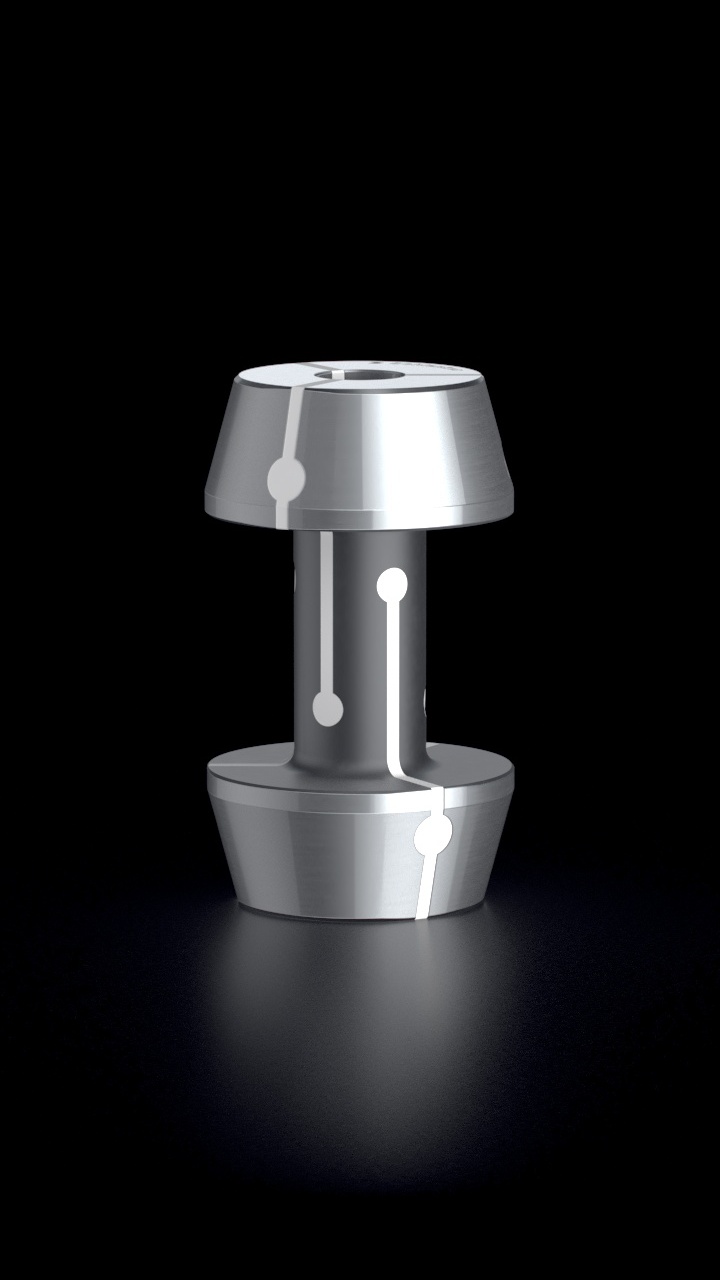

Schelenker additional collet versions are developed and manufactured to meet a wide range of technical requirements and application scenarios. Their design and functional characteristics allow the collet to be adapted to specific application requirements, ensuring reliable operation and consistent performance under varying operating conditions.
