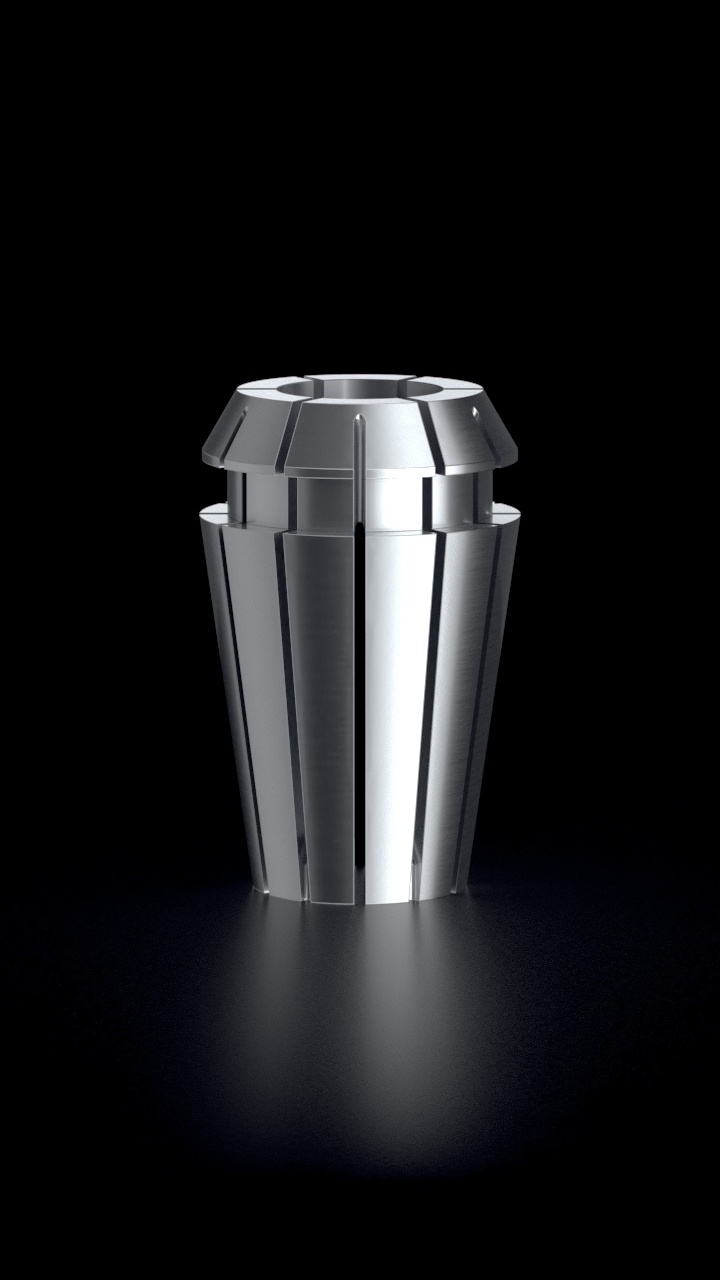

ER collets are designed and manufactured to offer maximum precision and reliability. By using them, you improve the processing quality and precision of your machines considerably.
ER collets are used in the collet holders, tapping attachments or in quick-change chucks as well as in tool clamping.

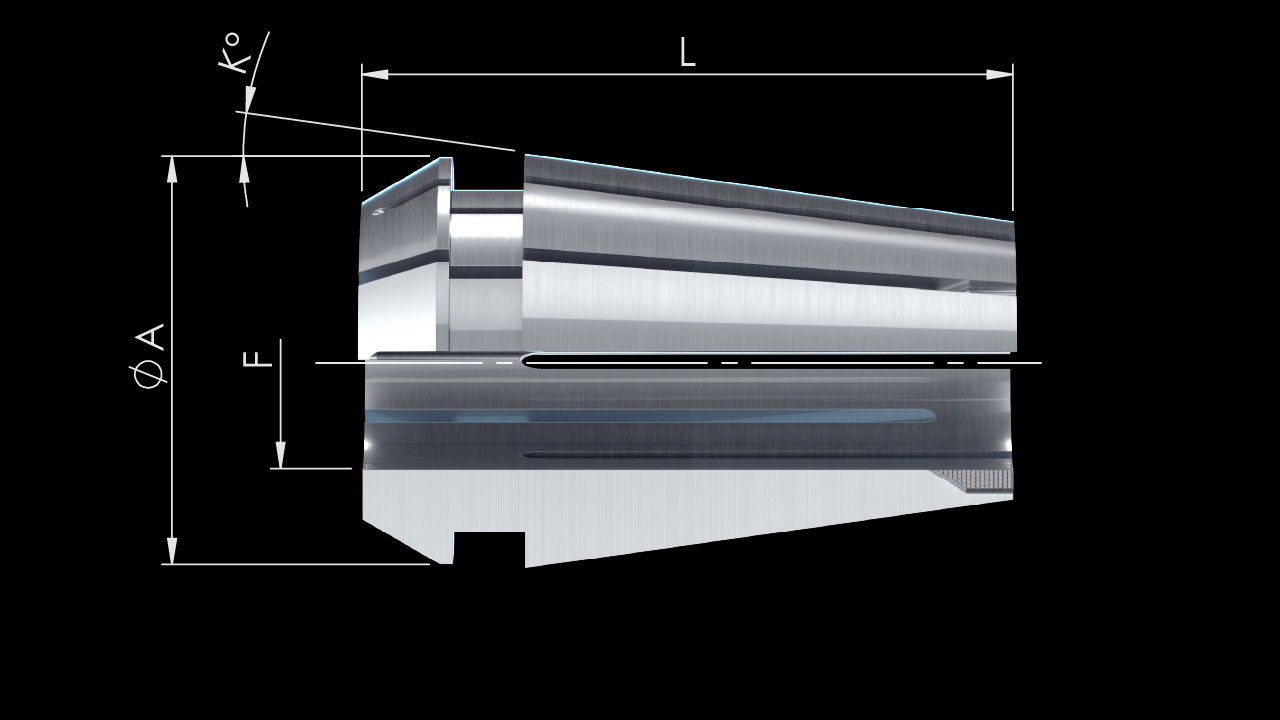

| A | |
| L | Total length |
| K | Taper angle |
| F | Shape |
Infotable - Click to expand
| Article | Ø A [mm] |
L [mm] |
K [Degree] |
F min. – max. [mm] |
Rise [mm] |
 |
|||||
| ER8 E4004 |
8,5 | 13,6 | 8 | 1,0 – 5,0 | 0,5 |
| ER11 E4008 |
11,3 | 18 | 8 | 1,0 – 7,0 | 0,5 |
| ER16 E426 |
17 | 27,5 | 8 | 1,0 – 10,0 | 0,5 |
| ER20 E428 |
21 | 31,5 | 8 | 1,0 – 13,0 | 0,5 |
| ER25 E430 |
26 | 34 | 8 | 1,0 – 16,0 | 0,5 |
| ER32 E470 |
33 | 40 | 8 | 2,0 – 20,0 | 0,5 |
| ER40 E472 |
41 | 46 | 8 | 3,0 – 26,0 | 0,5 |
Wir bieten eine große Auswahl an Optionen für ER-Spannzangen. Ganz gleich, ob Sie Ihre Arbeit vereinfachen, Ihre Produktionsqualität verbessern oder eine kundenspezifische Fertigungsanforderung erfüllen möchten: Unsere ER-Spannzangen bieten die passende Lösung. Testen Sie sie jetzt – Sie werden überzeugt sein.
ER Collets

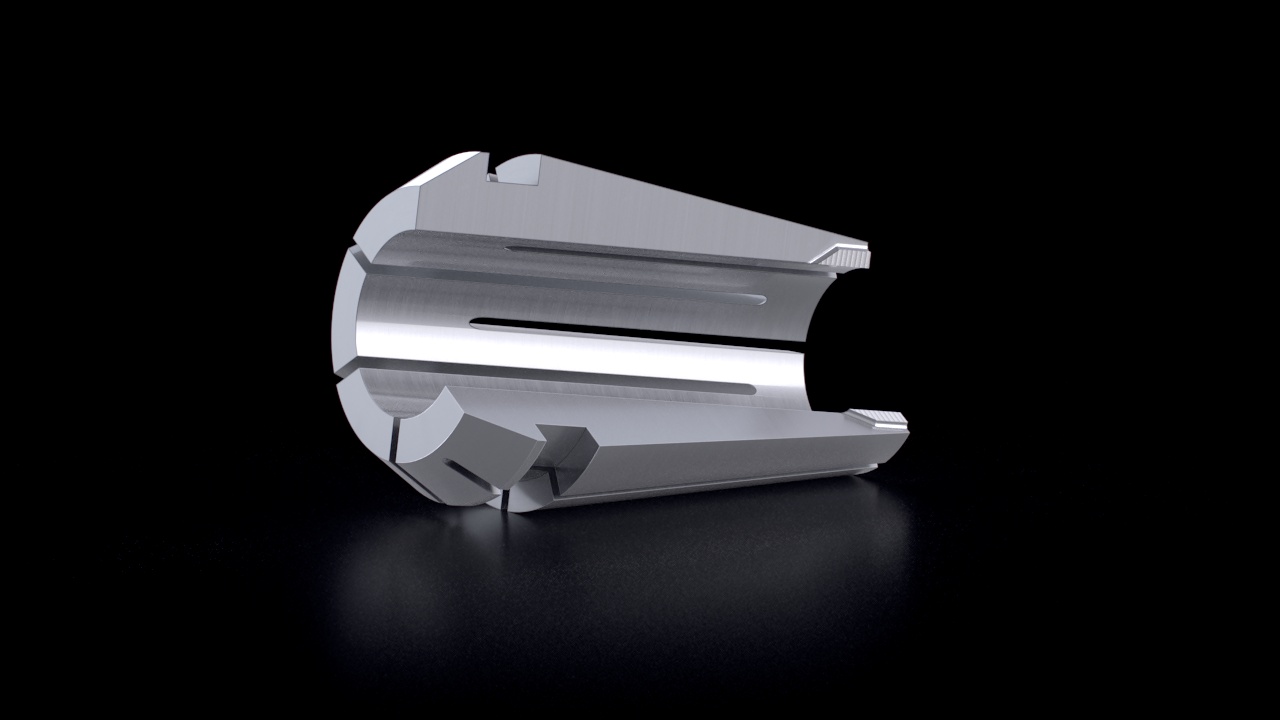

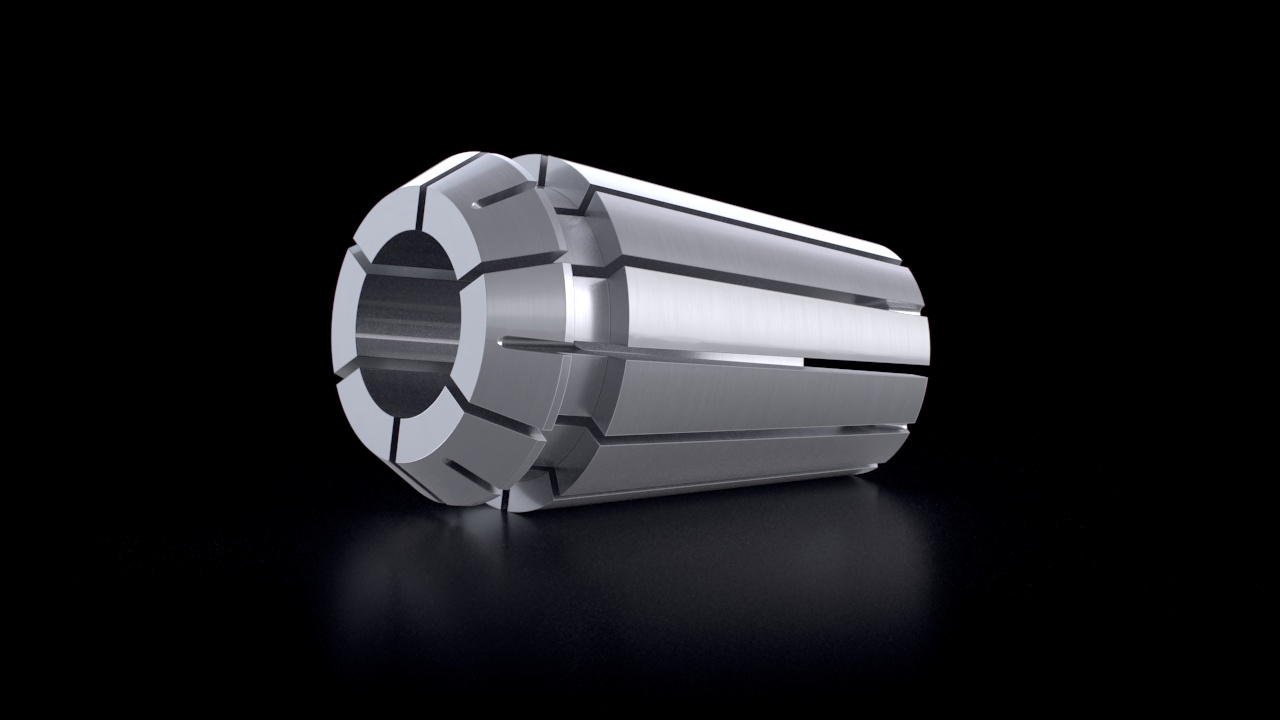

- Runout and repeatability are within 5 µm
- Ein Spannbereich von 0.5 – 1.0 mm ist möglich
ER Collets

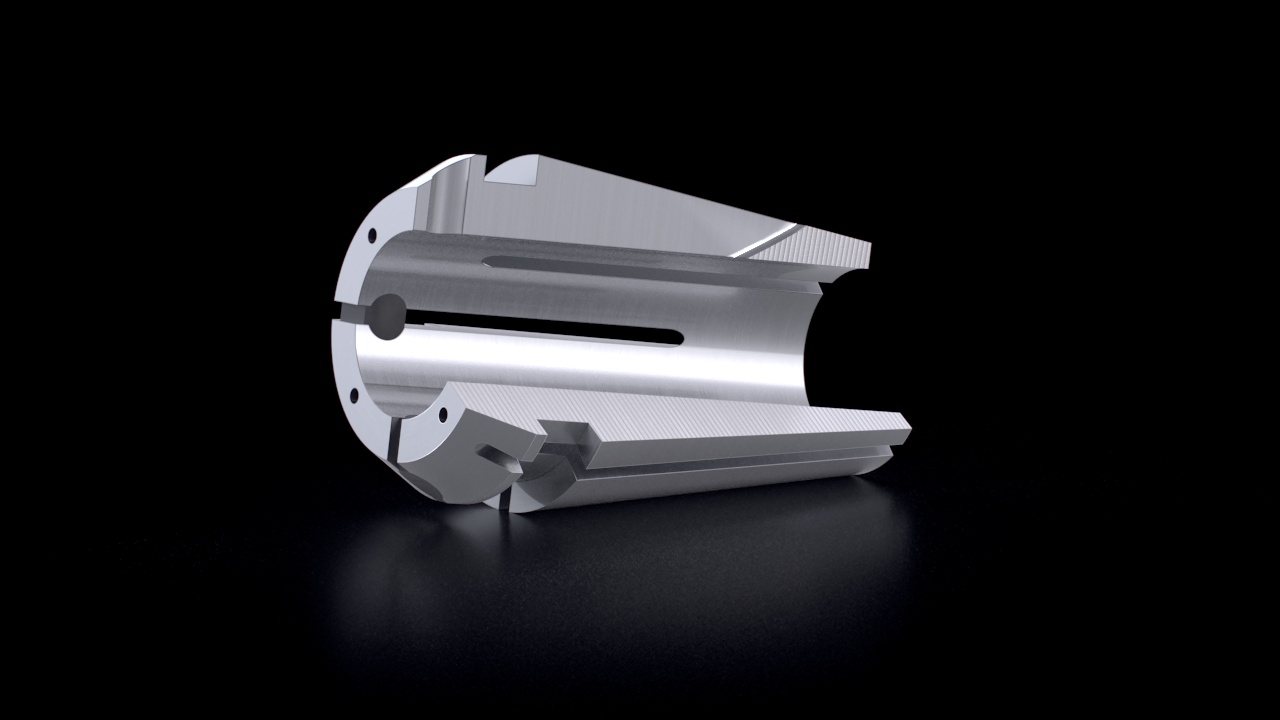

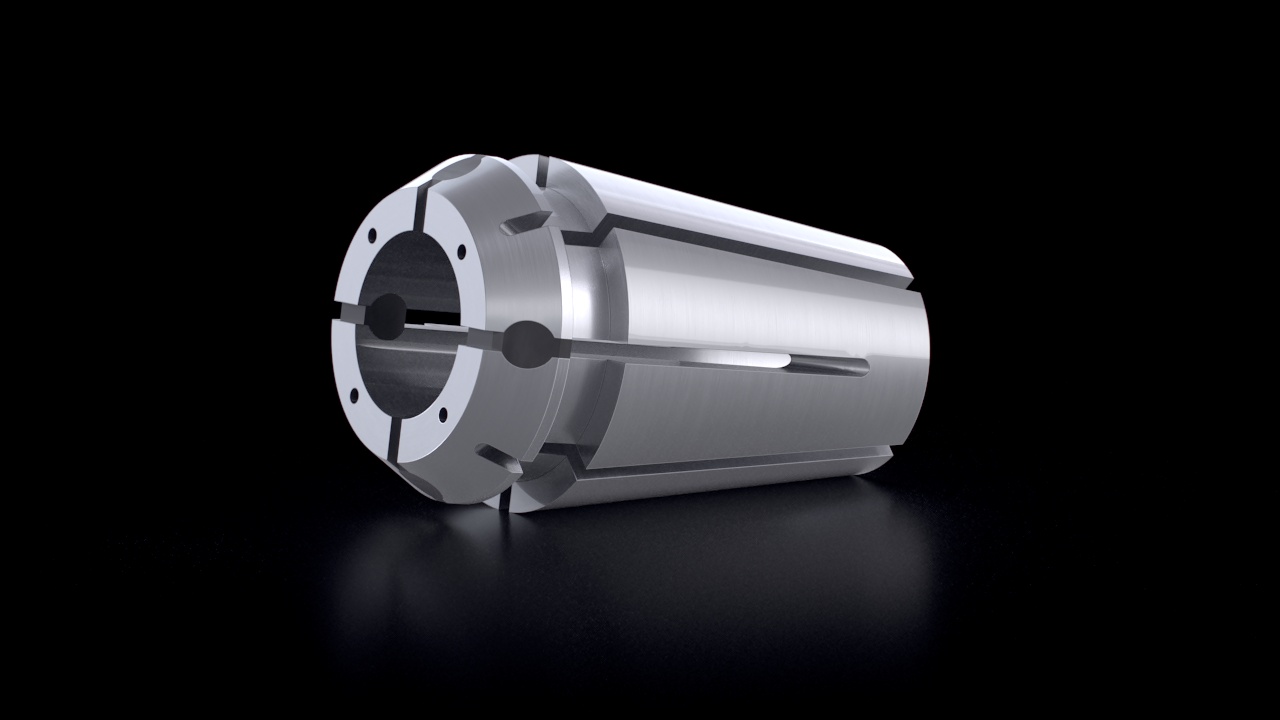

- Used for internal coolant supply in high-precision machining
- Runout and repeatability average 3 µm
- Limited clamping range: only the nominal dimension can be clamped
- Shafts with a lateral flat can be used under certain conditions. The flat must be positioned behind the rubber seals to ensure complete sealing
ER Collets
- Used for internal coolant supply in high-precision machining
- Runout and repeatability average 3 µm
- Limited clamping range: only the nominal dimension can be clamped
- The jet holes allow coolant to reach the cutting tools without requiring a coolant channel
ER Collets
- Runout and repeatability average 3 µm
- Ein Spannbereich von 0.5 – 1.0 mm ist möglich
