Adjustable Guide Bushes – Guiding Surface Designs

Adjustable Guide Bushes

Guide Surface Designs

Schlenker guide surface designs are developed and manufactured to support precise guidance and reliable positioning in a wide range of machining applications. Their geometry and surface characteristics can be matched to different operating requirements, allowing the guide system to provide accurate movement, stable support and consistent performance under varying working conditions.

Carbide Insert

Guide Surface Designs

High wear resistance
Higher service life

Adjustable Guide Bushes – Carbide Insert

Adjustable Guide Bushes – Carbide Insert

Adjustable Guide Bushes – Carbide Insert

Adjustable Guide Bushes – Carbide Insert – Cross-Section View

Extended Carbide Insert

Guide Surface Designs

Guide surface extended up to 40 mm
Processing of a wider range of parts
Improves the stability of the workpiece

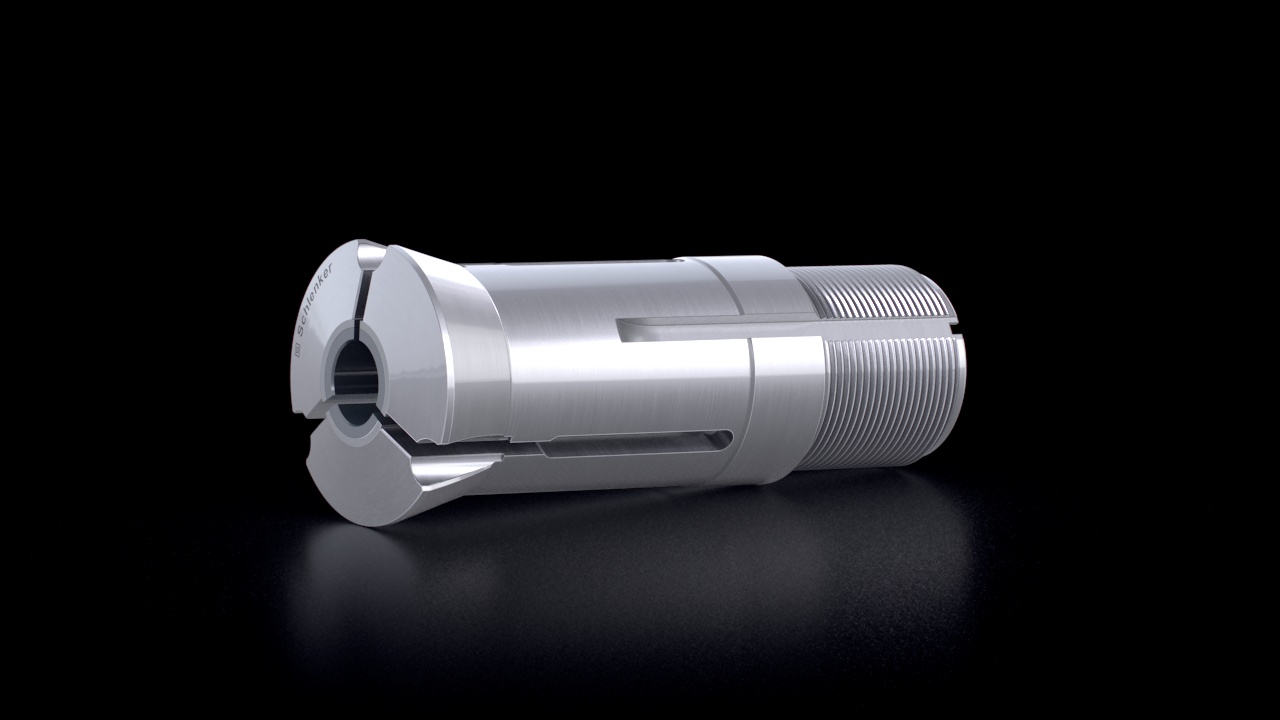

Adjustable Guide Bushes – Extended Carbide Insert

Adjustable Guide Bushes – Extended Carbide Insert

Adjustable Guide Bushes – Extended Carbide Insert

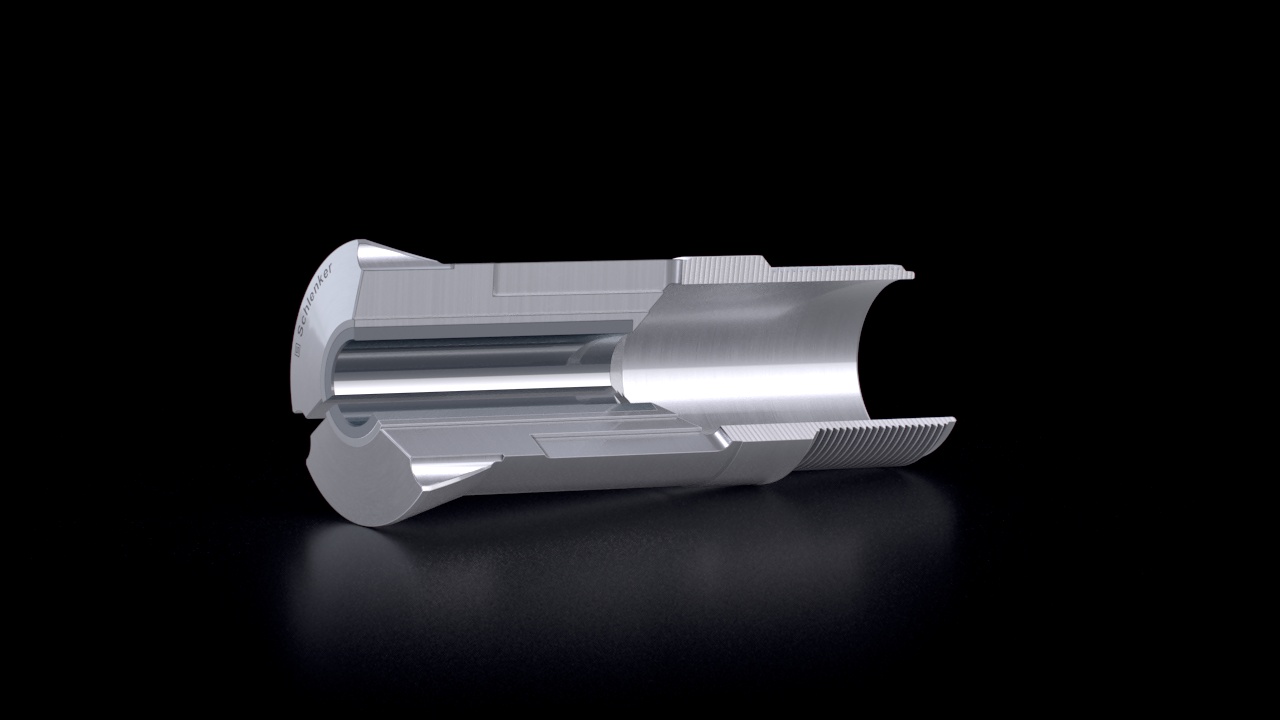

Adjustable Guide Bushes – Extended Carbide Insert – Cross-Section View

Extended Carbide Insert With Bush

Guide Surface Designs

Suitable for extra long guidance
Guidance possible over the whole length of the guide bush

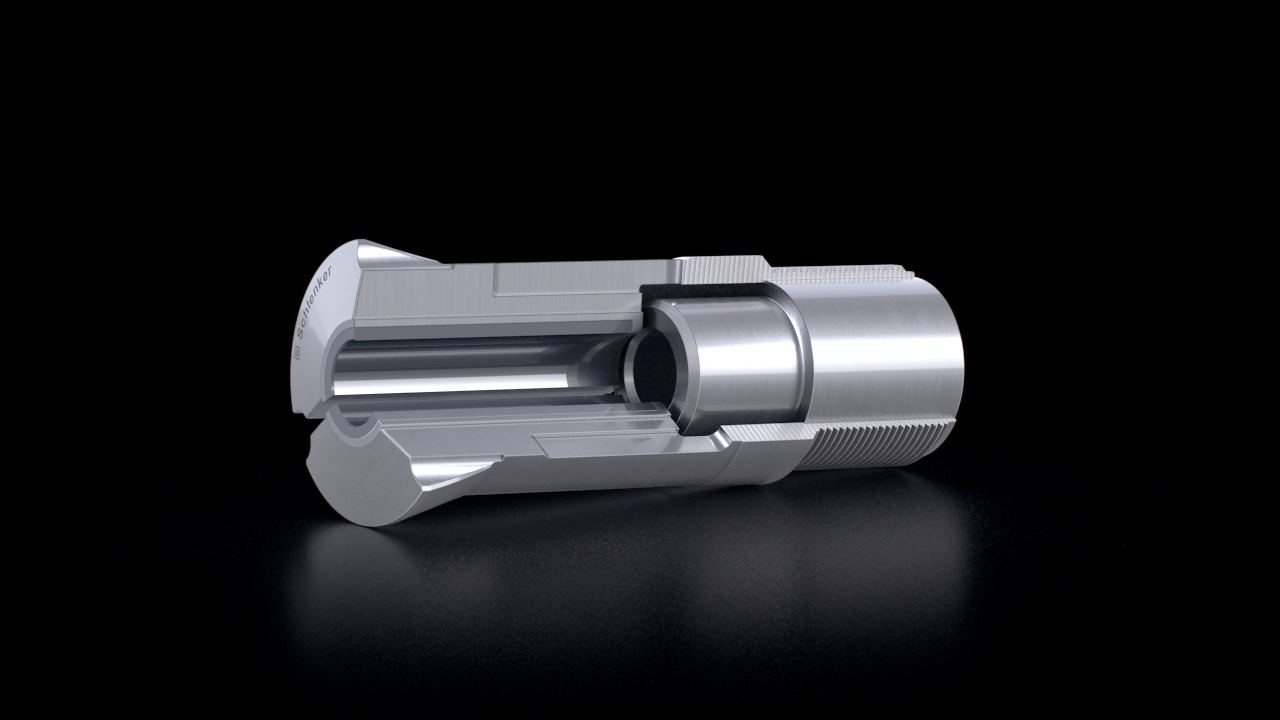

Adjustable Guide Bushes – Extended Bush with Carbide Insert

Adjustable Guide Bushes – Extended Bush with Carbide Insert

Adjustable Guide Bushes – Extended Bush with Carbide Insert

Adjustable Guide Bushes – Extended Bush with Carbide Insert – Cross-Section View
