Inner Collets

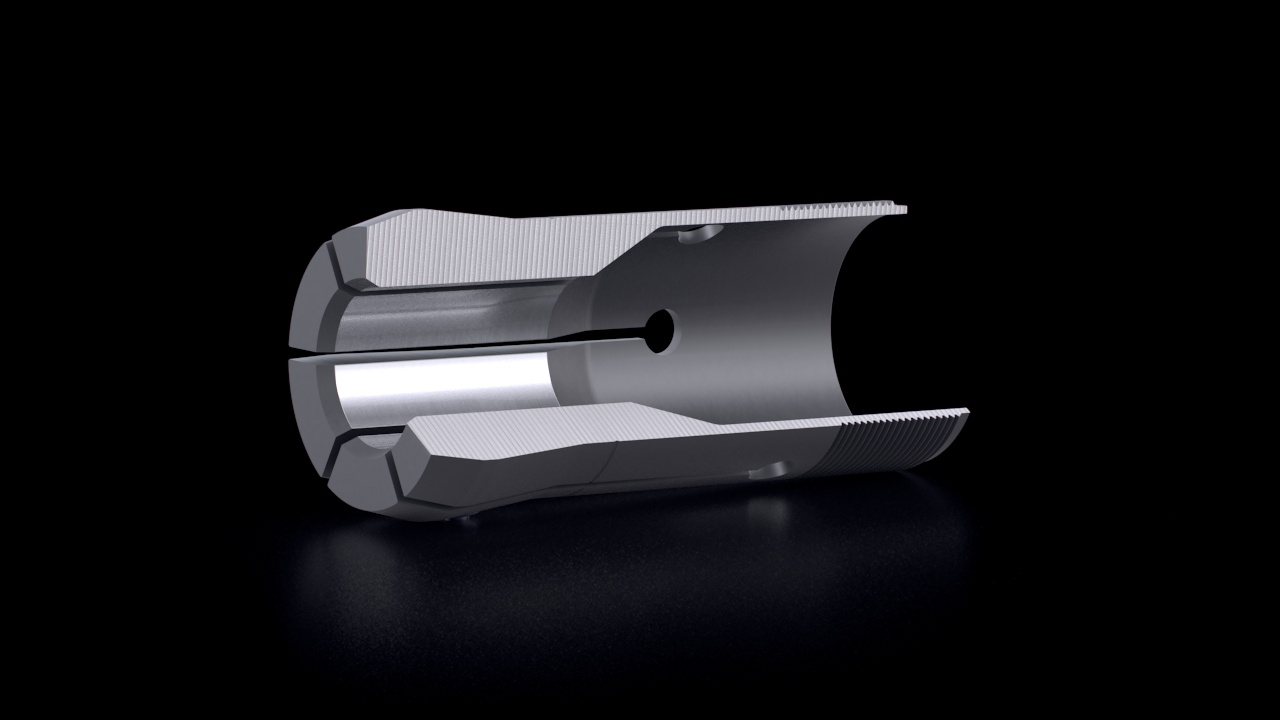

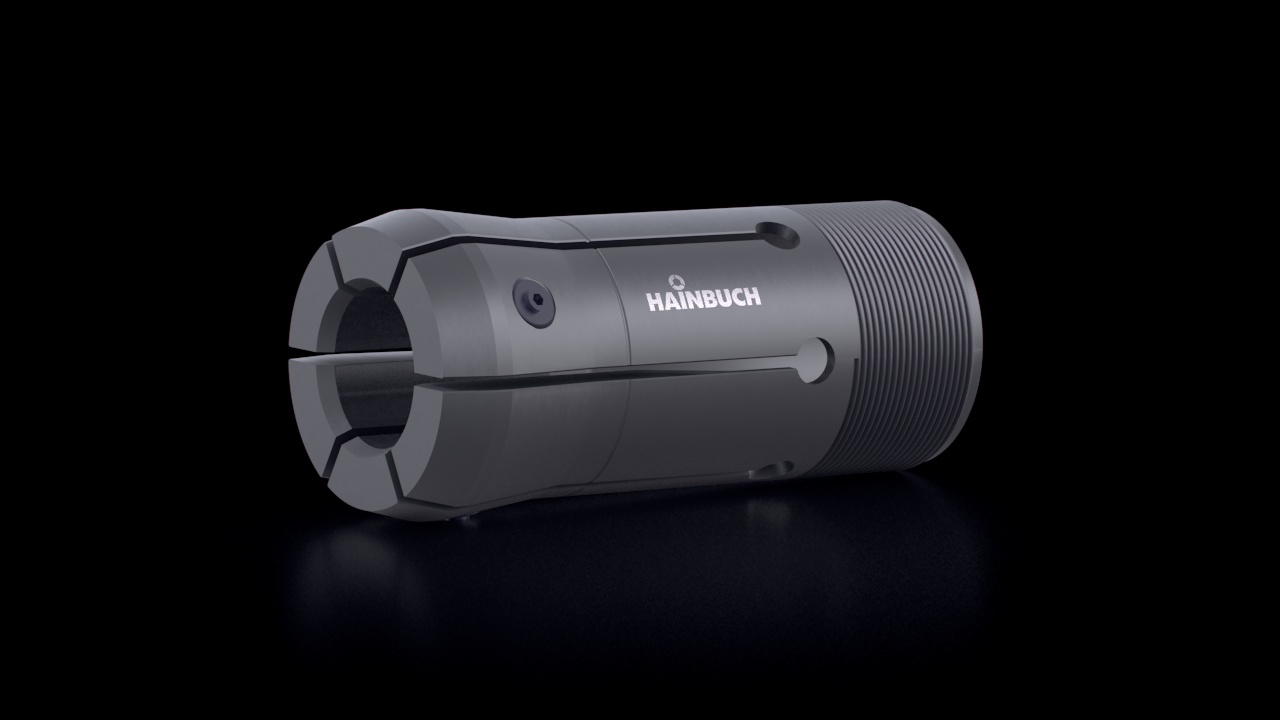

Schlenker RS inner collets are designed and manufactured to offer maximum precision and reliability. By using them, you improve the processing quality and precision of your machines considerably.
The inner collet can be adjusted multiple times and has therefore a longer service life. The adjustable thrust force significantly reduces the abrasion and wear of the feeding collets.

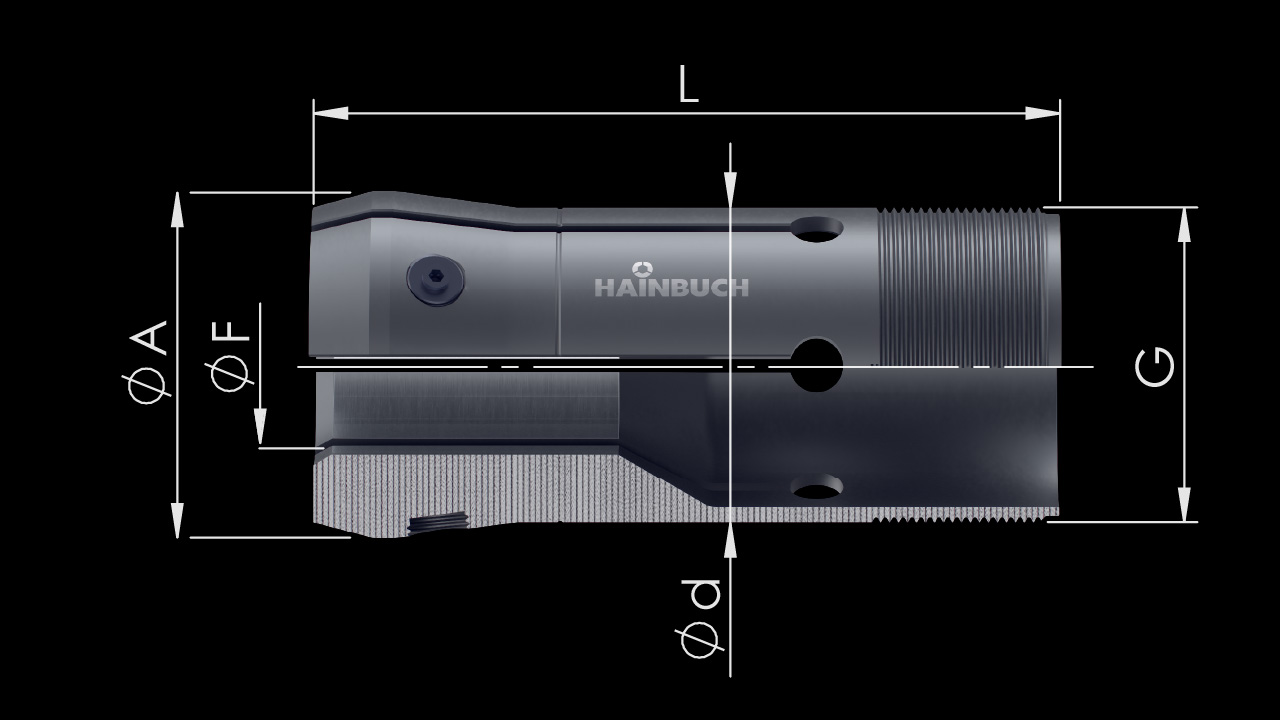

| d | Shaft |
| A | Head |
| L | Total length |
| G | Thread |
| F | Shape |
Infotable - Click to expand
| Article | ø d [mm] |
ø A [mm] |
L [mm] |
G [mm] |
F min – max. [mm] |
||
 |
 |
 |
|||||
| RS16 | 18 | 20,8 | 61 | M18x1 | 2,5 – 16,0 | 4,0 – 11,0 | 4,0 – 13,0 |
| RS20 | 20 | 23,8 | 61 | M20x1 | 4,0 – 18,0 | 4,0 – 12,0 | 4,0 – 14,5 |
| RS24 | 27,8 | 65 | 61 | M24x1 | 4,0 – 22,0 | 5,0 – 15,0 | 5,0 – 19,0 |
| RS25 | 28 | 31,8 | 72 | M28x1 | 4,0 – 25,0 | 7,0 – 17,0 | 6,0 – 22,0 |
| RS32 | 35 | 38,6 | 83 | M35x1 | 4,0 – 32,0 | 7,0 – 21,0 | 7,0 – 27,0 |
| RS40 | 44 | 48 | 90 | M44x1 | 6,0 – 40,0 | 10,0 – 28,0 | 7,0 – 34,0 |
Inner Collets
- Standard design
