SHK Version

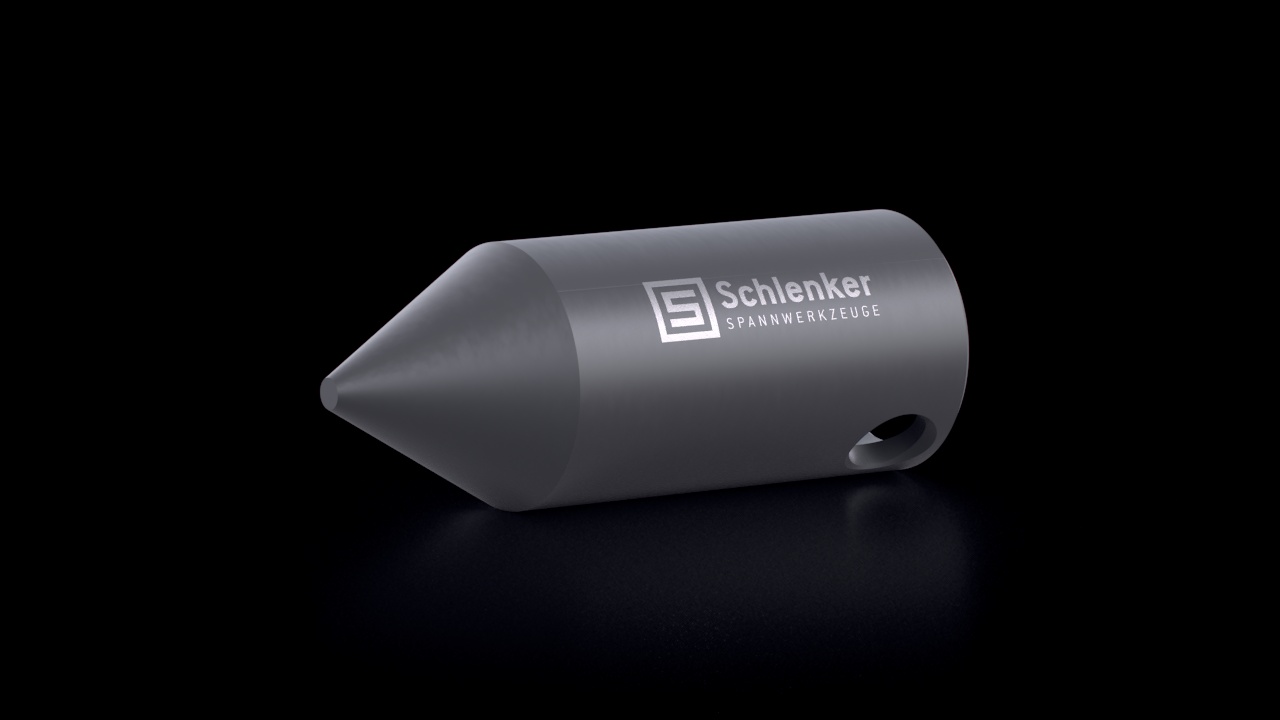

Schlenker SHK front ejectors SKK are designed and manufactured to offer maximum precision and reliability. By using them, you improve the processing quality and precision of your machines considerably.

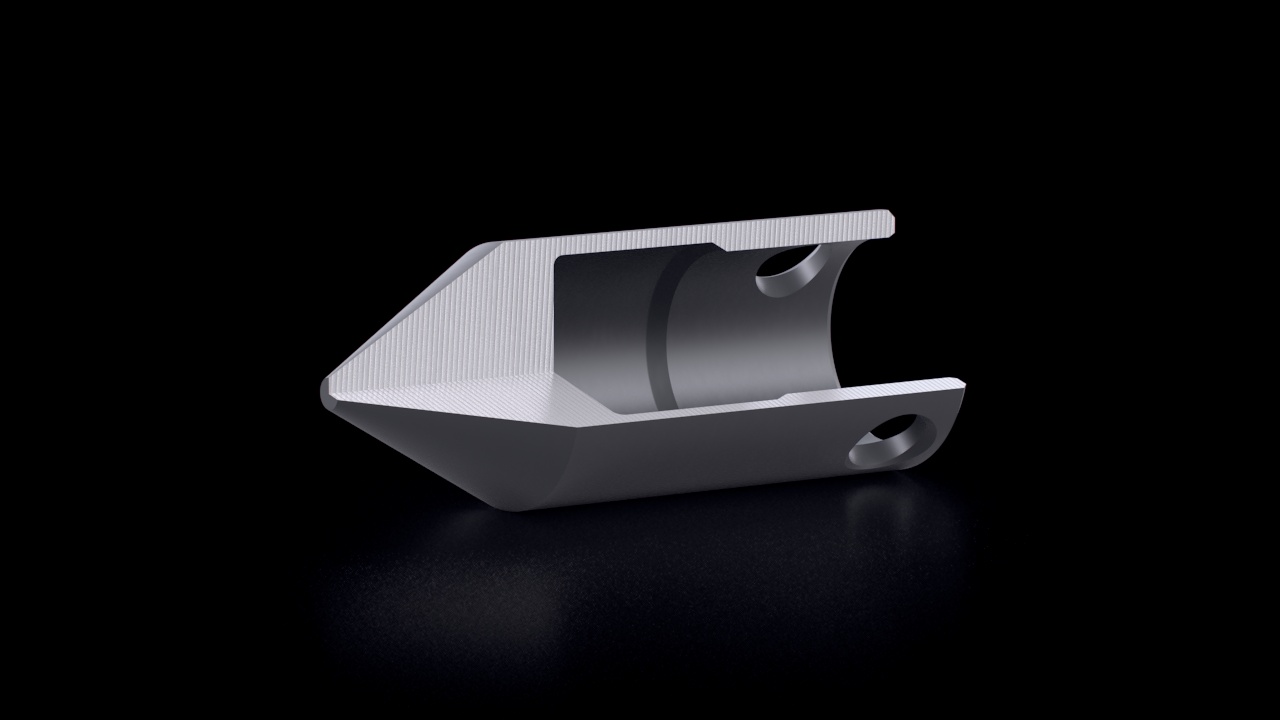

Front ejectors, also called SKK, are mounted like the bar feed collets, on the rotating inserts, which are fixed with the feed rod. The tube material can only be pushed over the front ejectors in the machine direction. Residual piece ejection takes place in the machine room. Depending on the manufacturer, the front ejectors are connected to the rotating inserts via a cross pin, three set screws or an internal thread.

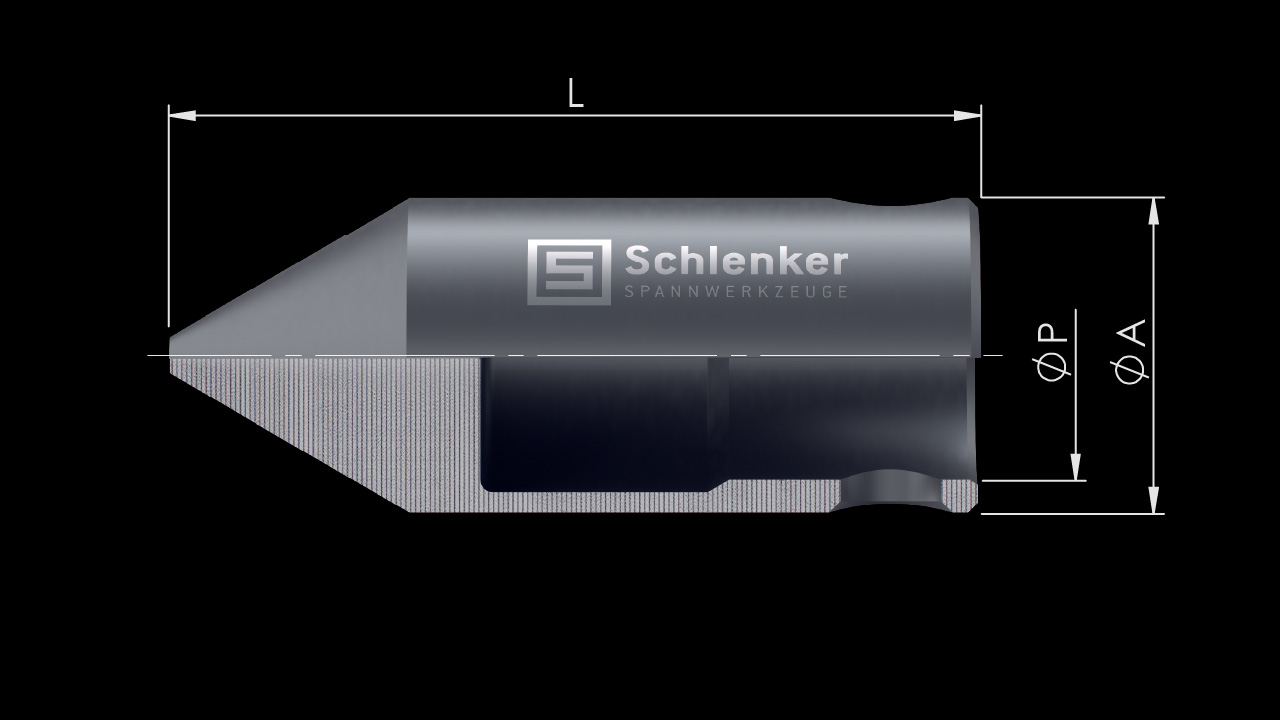

| A | Outside diameter |
| P | Fit ID |
| L | Total length |
Infotable - Click to expand
| Article | Ø A [mm] |
Ø P [mm] |
L [mm] |
| SKK10 | 10,3 | 7H7 | 40 |
| SKK12 | 12,3 | 8H7 | 40 |
| SKK13 | 13,3 | 8H7 | 40 |
| SKK14 | 14,3 | 8H7 | 40 |
| SKK15 | 15,3 | 11H7 | 40 |
| SKK16 | 16,3 | 11H7 | 40 |
| SKK17 | 17,3 | 11H7 | 40 |
| SKK18 | 18,3 | 11H7 | 40 |
| SKK20 | 20,3 | 14H7 | 65 |
| SKK22 | 22,3 | 14H7 | 65 |
| SKK24 | 24,3 | 14H7 | 65 |
| SKK25 | 25,3 | 20H7 | 65 |
| SKK26 | 26,3 | 20H7 | 65 |
| SKK28 | 28,3 | 20H7 | 65 |
| SKK30 | 30,3 | 20H7 | 65 |
| SKK31 | 31,3 | 20H7 | 65 |
| SKK32 | 32,3 | 20H7 | 65 |
| SKK34 | 34,3 | 20H7 | 65 |
| SKK35 | 35,3 | 20H7 | 65 |
| SKK36 | 36,3 | 20H7 | 65 |
| SKK38 | 38,3 | 20H7 | 65 |
| SKK40 | 40,3 | 20H7 | 65 |
SHK Version
- Suitable for round material
- Available sizes D10 to D40
