Alignment Mandrels

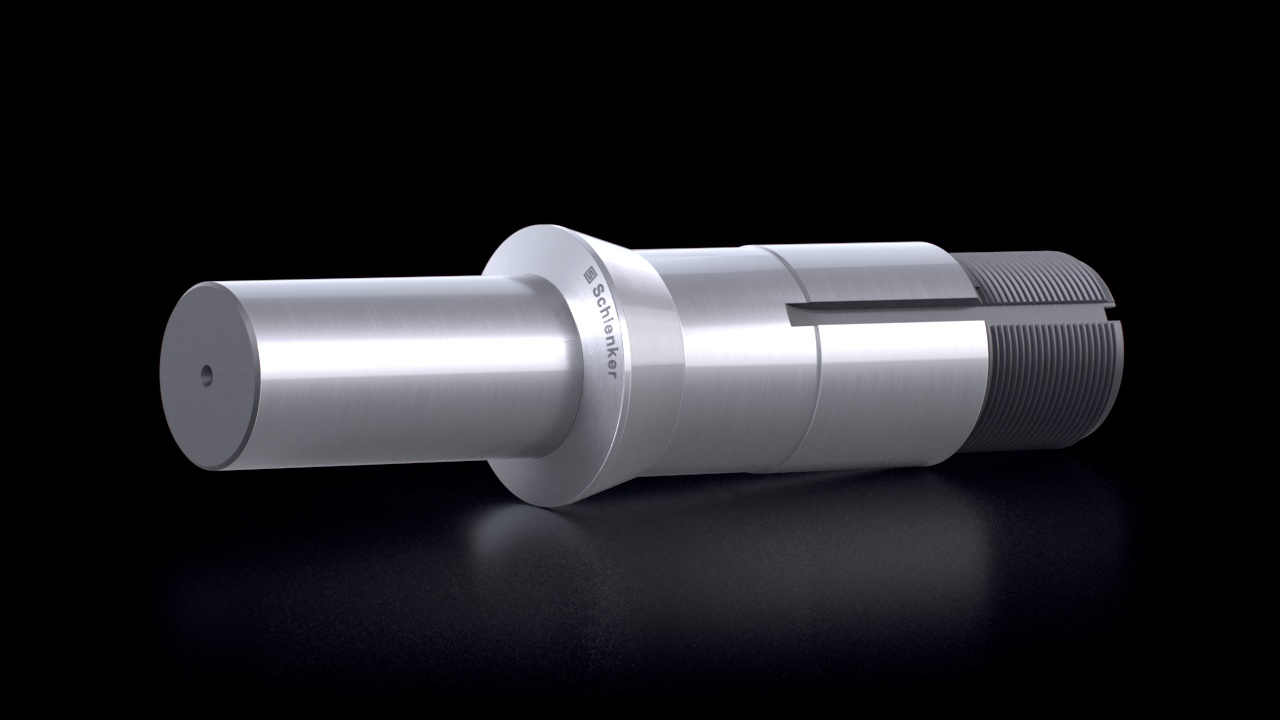

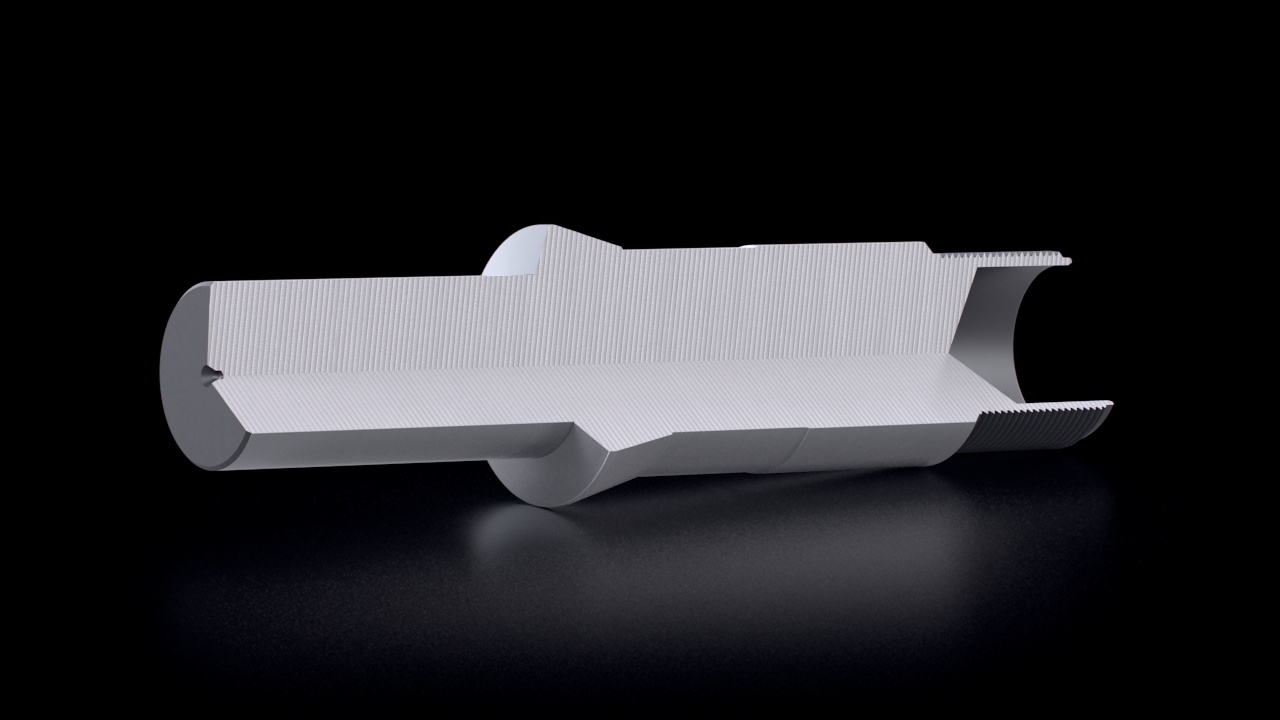

Adjustable Guide Bush Alignment Mandrels

Our adjustable guide bush alignment mandrels are used in all common machines. They are characterized above all by their precision and durability. Test our adjustable guide bush alignment mandrels now, you will be convinced.

The high-precision adjustable guide bush alignment mandrels are particularly suitable for checking the axial or radial offset of machine axes or the offset of the main spindle to the sub spindle of the machine geometry. Furthermore, alignment mandrels are used for checking the run-out and tumbling on main or sub spindle.

d	Shaft-Ø
A	Outside diameter-Ø
B	Nose-Ø
L1	Length L1
L	Total length
K	Taper angle
G	Thread

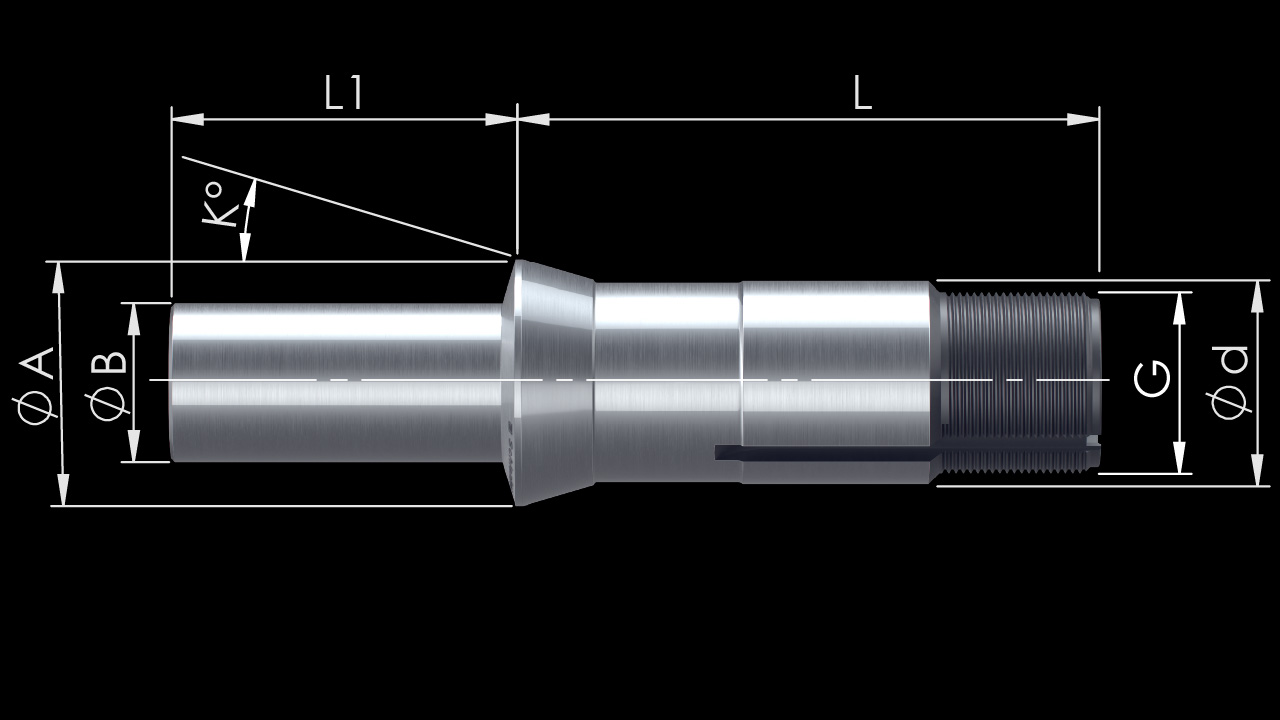

Adjustable Guide Bush Alignment Mandrels – Technical Drawing

Infotable - Click to expand

Article	Ø d [mm]	Ø A [mm]	Ø B [mm]	L1 [mm]	L [mm]	K [Degree]	G
I351	9	12,5	8	50	44	16	M8x0,75
I352	11	14,5	10	50	53	16	M10x0,8
F3001	11	14,5	10	50	53	16	M10x0,75
I353	16	20,5	14	50	59	16	M14x1
I353SR	16	20	14	50	57	16	M14x1
F853	18	22	16	70	60	30	M16x1
SD125R	18	22	16	70	60	30	M18x1
T221	21	24	18	70	57,5	12	M18x1
SNC15	21	24	18	70	57,5	12,5	M18x1
I354	22	29	20	100	68	16	M19x1
F391	22	29	20	100	68	16	M22x1
TSG20R	23	28	20	100	72	16	M22x1
F605	24	29,5	20	100	61	30	M24x1
TD26	26	29	20	100	77	16	M25x1
T223	28	34	22	100	82	16	M25x1
I357	28	38	22	100	81	30	M25x1
B230	30	35	22	100	59	16	M30x1
T227	34	41	25	100	87,5	10	M34x1
T229	42	49	25	100	82	16	M40x1
TD32	42	48	25	100	82	20	M40x1
ML36	44	51	30	150	82	16	M42x1
FST38	48	54	30	150	82	16	M46x1
FSL38	46	53	30	150	82	16	M45x1
B240	48	54	30	150	81	10	M46x1
B236	48	56	30	150	81	30	M48x1,25

Adjustable Guide Bush Alignment Mandrels Versions

We offer adjustable guide bush alignment mandrels for all adjustable guide bush types in our range. Whether you want to simplify your work, improve production quality, or meet specific customer requirements, our guide bush alignment mandrels provide the right solution. Try them now , you’ll be convinced.
