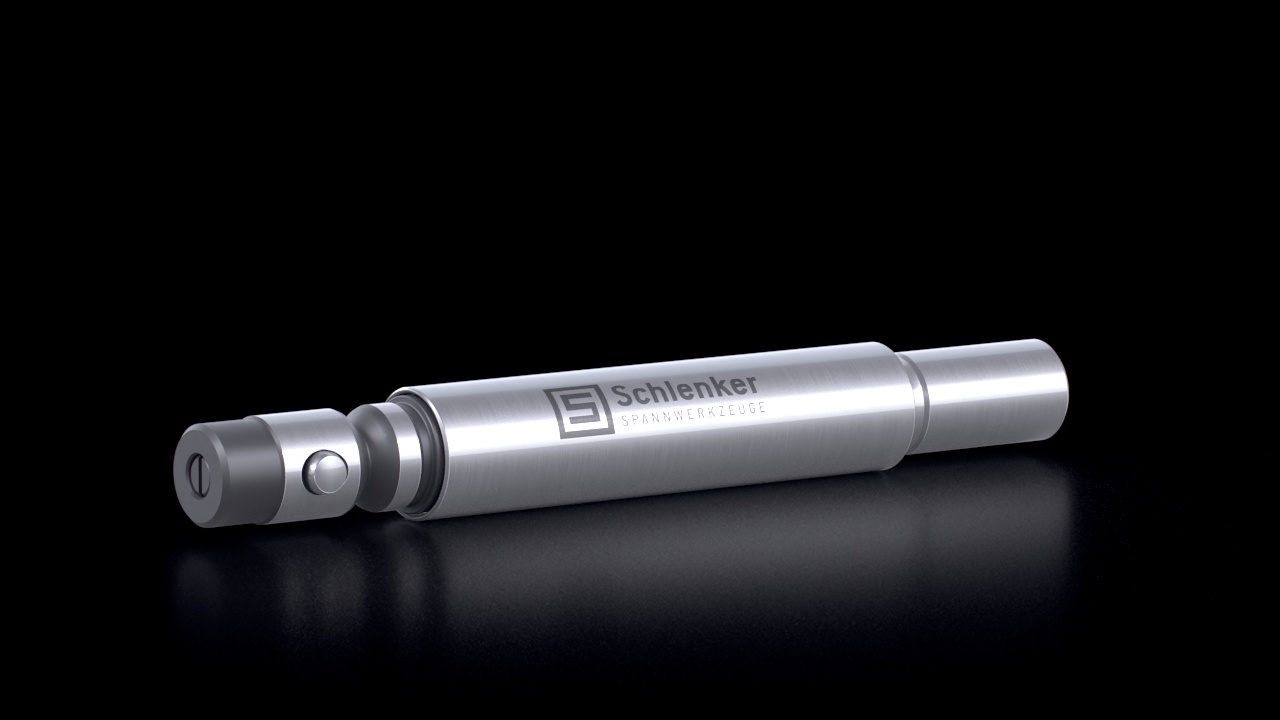

Turbo D25-D36
Schlenker TURBO rotating inserts D25-D36 are designed and manufactured to offer maximum precision and reliability. By using them, you improve the processing quality and precision of your machines considerably.
TURBO rotating insertsare D25-D36 shrunk into the feed rod and additionally pinned if required. The bar feed collets are fastened to the rotating inserts via three set screws.

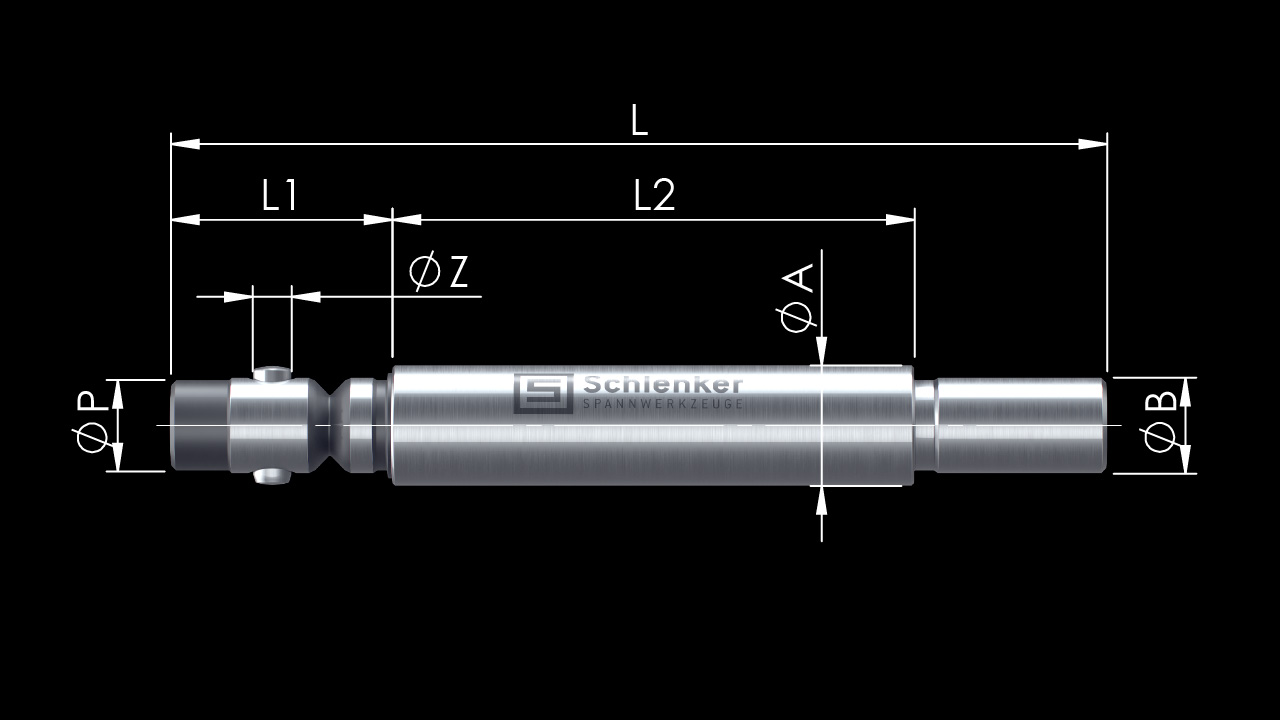

| A | Outside diameter |
| B | Feed rod interface |
| P | Fit ID |
| Z | Cross bore |
| L1 | Length L1 |
| L2 | Length L2 |
| L | Total length |
Infotable - Click to expand
| Article | Ø A [mm] |
Ø B [mm] |
Ø P [mm] |
Ø Z [mm] |
L1 [mm] |
L2 [mm] |
L [mm] |
| LT25 D25 |
25 | 20 | 20 | 8 | 46 | 110 | 196 |
| LT30 D30 |
30 | 25 | 20 | 8 | 46 | 110 | 196 |
| LT32 D32 |
32 | 25 | 20 | 8 | 46 | 110 | 196 |
| LT34 D34 |
34 | 30 | 20 | 8 | 46 | 110 | 196 |
| LT36 D36 |
36 | 30 | 20 | 8 | 46 | 110 | 196 |
Turbo D25-D36
- Available sizes D25 to D36
