TORNOS ERT
Schlenker TORNOS ERT rotating inserts are designed and manufactured to offer maximum precision and reliability. By using them, you improve the processing quality and precision of your machines considerably.
Our TORNOS ERT rotating inserts are screwed into the feed rod. The bar feed collets are fastened to the rotating inserts via an internal thread.

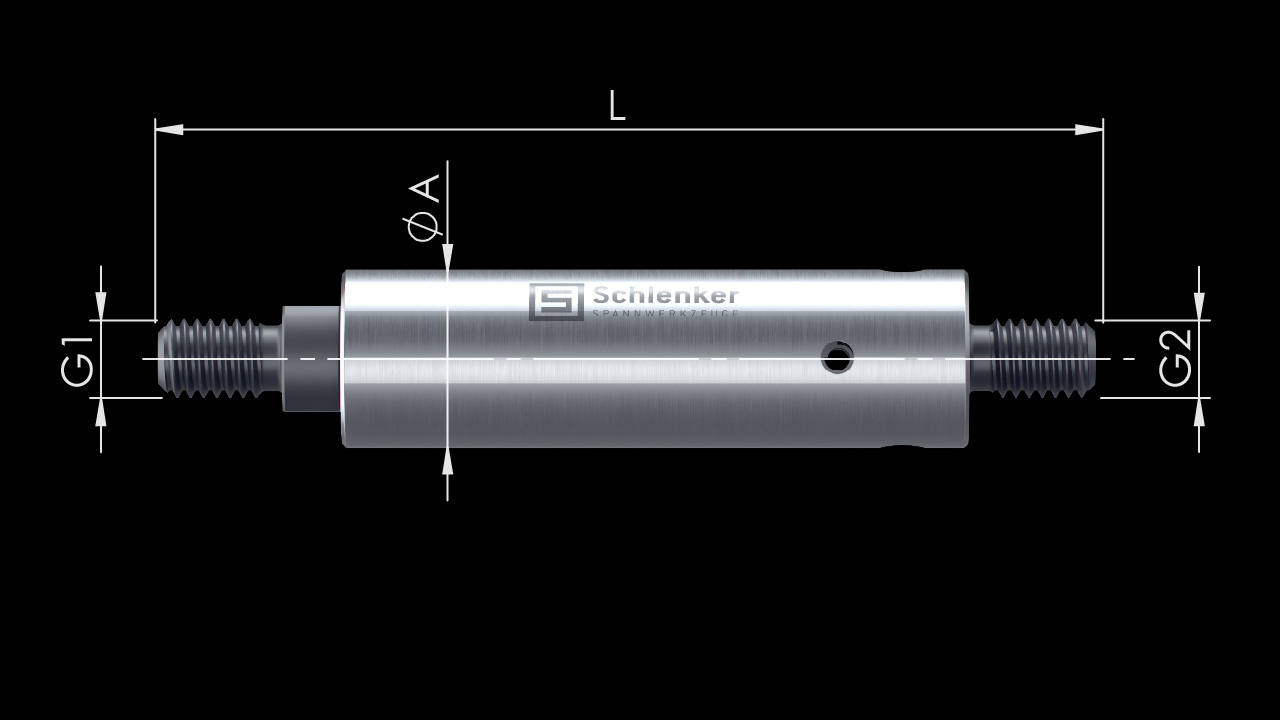

| A | Outside diameter |
| G1 | Thread |
| G2 | Thread |
| L | Total length |
Infotable - Click to expand
| Article | Machine manufacturer | Ø A [mm] |
G1 | G2 | L [mm] |
| L5.5 ERT ERT0550 |
TORNOS | 5,5 | M3 | M3 | 55 |
| L7 ERT ERT0700 |
TORNOS | 7 | M4 | M5 | 41,5 |
| L7.5 ERT ERT0750 |
TORNOS | 7,5 | M4 | M5 | 42 |
| L8.5 ERT ERT0850 |
TORNOS | 8,5 | M5 | M5 | 41,5 |
| L10.5 ERT ERT1050 |
TORNOS | 10,5 | M6 | M6 | 45 |
| L13.5 ERT ERT1350 |
TORNOS | 13,5 | M6 | M6 | 52 |
Our TORNOS ERT rotating inserts are used in all common loading magazines. They are characterized above all by their precision and durability. Test our TORNOS ERT rotating inserts now, you will be convinced.
TORNOS ERT
- Available sizes D5.5 to D13.5
